CAL2K WATER COOLER
REMOVAL AND REPLACEMENT OF THE PELTIER ELEMENT
STEP 1

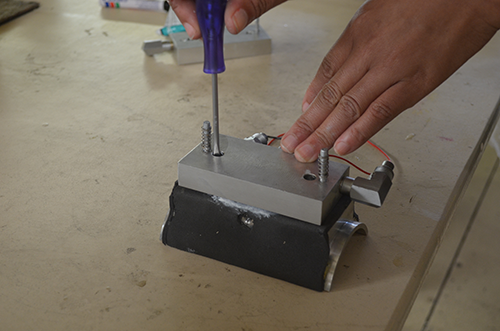

Remove the 2 screws that hold the two parts of the pads together.
STEP 2
Separate the two parts.

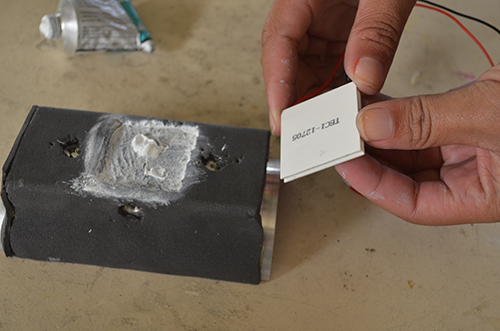

Remove the element and take note of the polarity.
STEP 3
Clean the surfaces of the two parts.
REPLACEMENT OF THE PELTIER ELEMENT
STEP 1

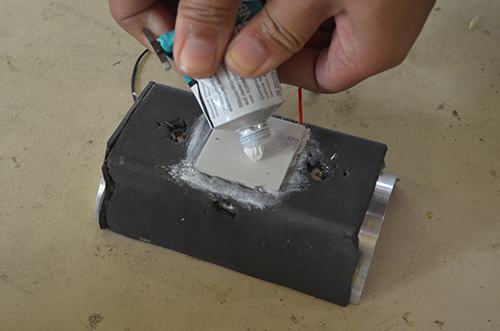

Smear each surface of the element with heat sink compound.
STEP 2

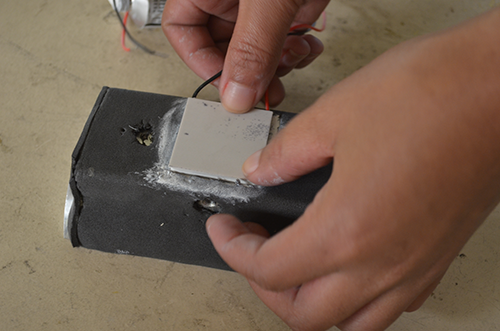

Place the element on one surface ensuring correct polarity.
STEP 3

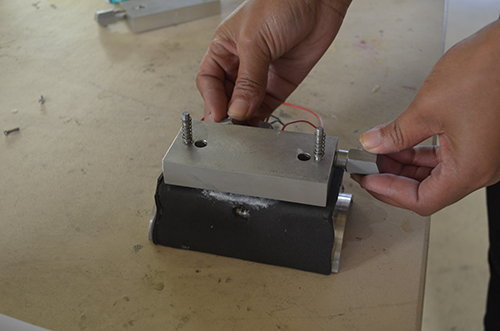

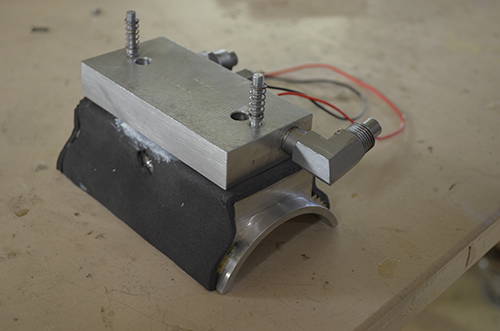

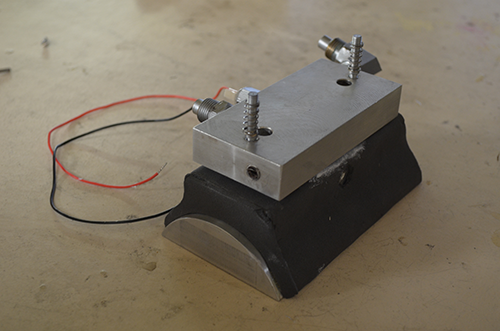

Place the two parts together, making sure they are the correct way around, as shown below.

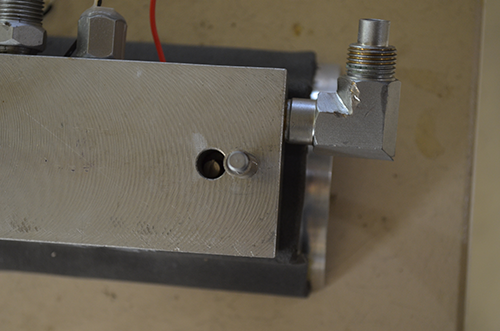

Place the screws in the holes and tighten each individually, a small amount at a time.
STEP 4

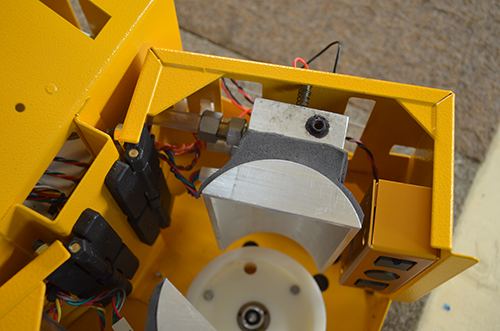

Refit the pad the same way as it was removed.
STEP 5
Ensure that the internal water pipes do not get any twists in them.
STEP 6
Check for water leaks.
